Portable EV chargers
Portable EV Chargers are Designed to be Lightweight
BASIC INTRODUCTION
Portable EV chargers are designed to be lightweight, compact, and easy to transport, making them a convenient option for EV drivers who need to charge on the go or in locations where a fixed charging station is not available.
| Input Type | Single-Phase and Three-Phase |
|---|---|
| Grid Frequency | 50HZ or 60HZ |
| Power Rate: | 3.5 kW, 7 kW, 11/22 kW |
| Rate Voltage | 220V AC (95-270) |
| Rate Current | 6A to16A and 6-32A |
| Charge Connector | Type 2 Plug |

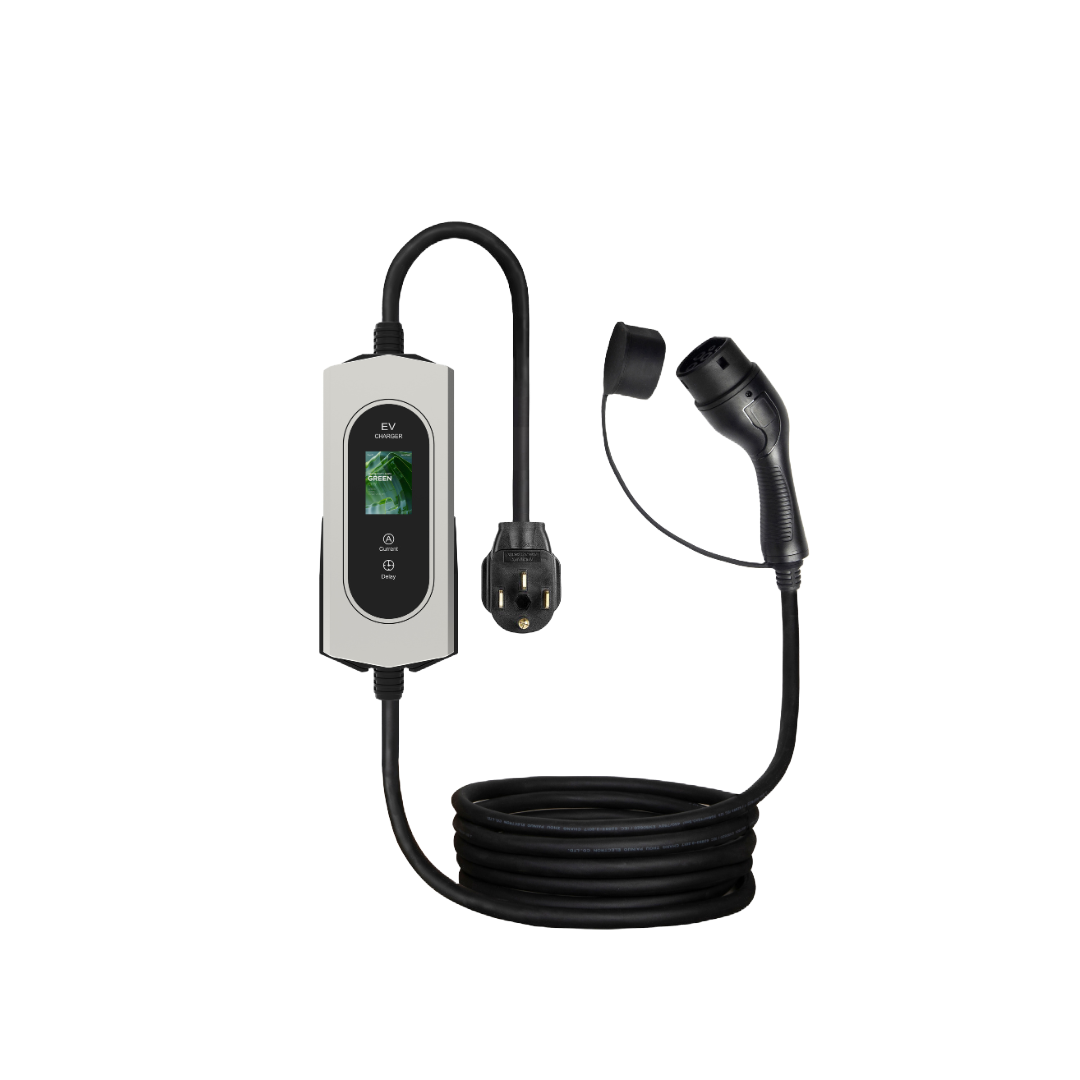

3.5KW- 16A
Single phase, type 2

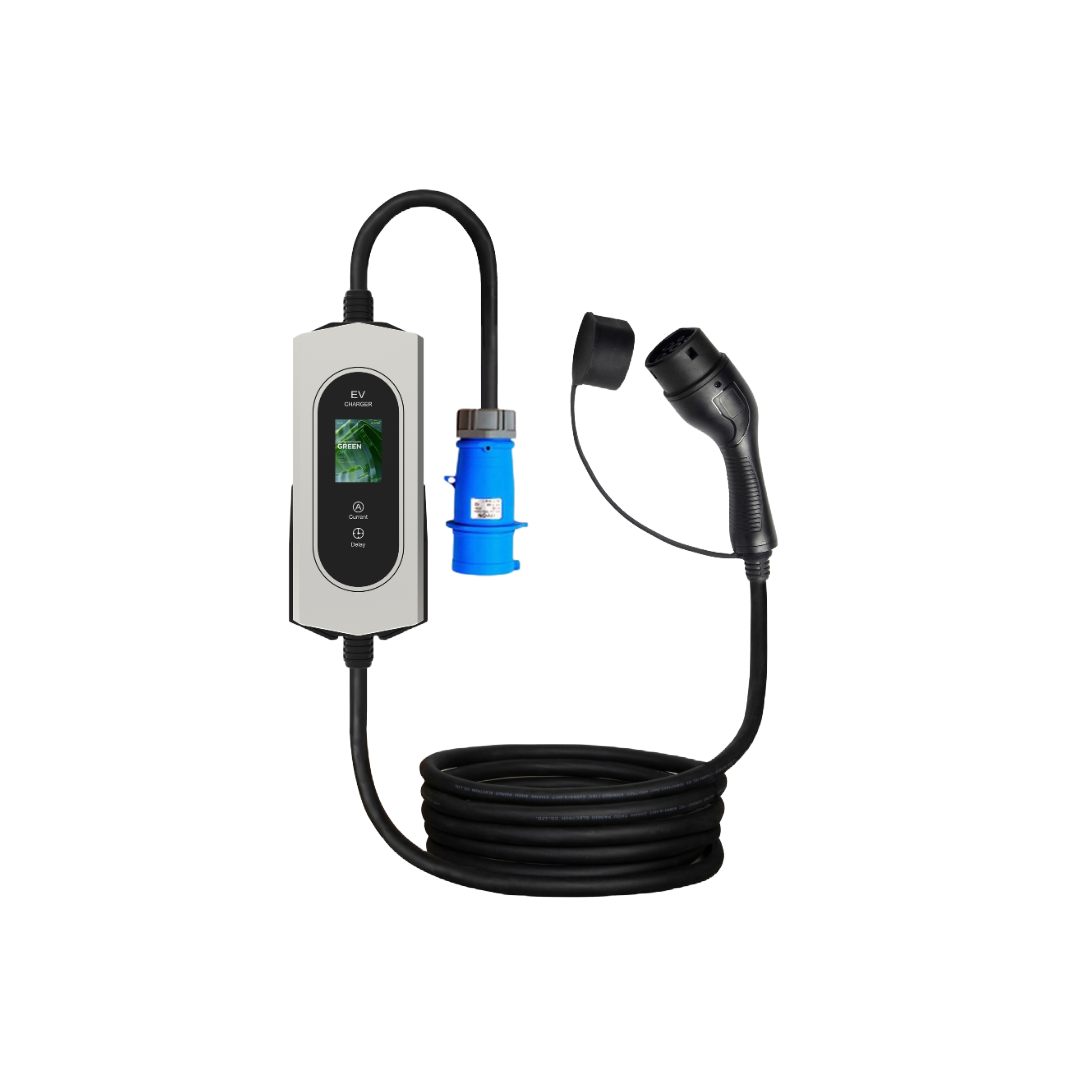

7KW-32A
Single phase, type 2

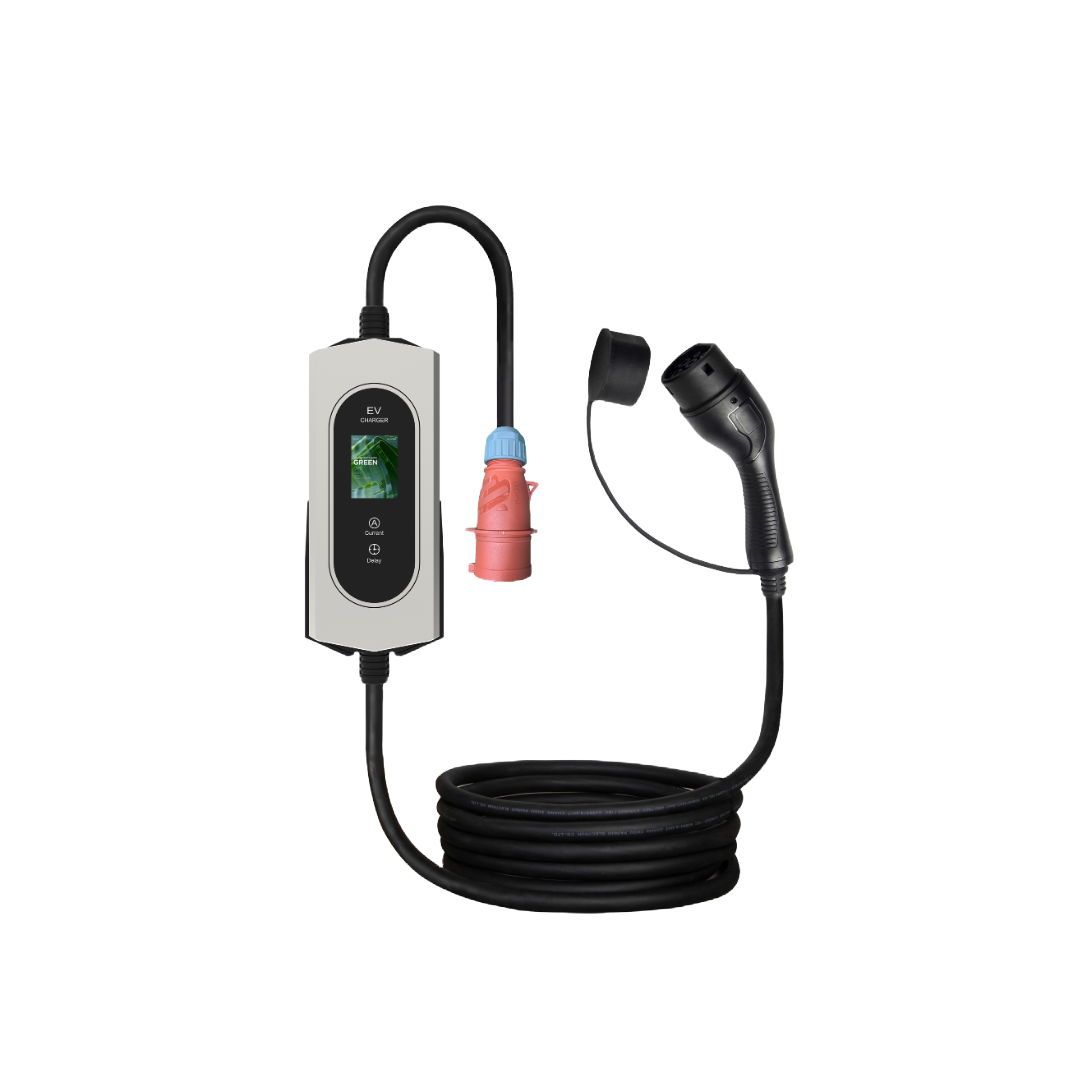

22KW-32A
3 phase, type 2
PRODUCT DETAILS
Economical portable EV charging that is widely used in private parking spaces, electric vehicle manufacturers, and real estate development companies; 1.0 rate measurement Accuracy/1.0 rate accuracy meter are all modular in design, which is convenient for users to choose and configure flexibly; The shell is made of ABS+PC mixed material with excellent flame-retardant performance and is suitable for various weather. The design of EV portable charger fully embodies the minimalist design idea, makes full use of the organic curved surface elements, and the unique circular aperture indicator is arranged around the charging plug storage seat, which has a strong overall sense, of safety, and reliability of industrial products, and a strong sense of technology.
SPECIFICATIONS
| Parameter | |||||||
|---|---|---|---|---|---|---|---|
| Type 1 | Type 2 | ||||||
| Ratled Current | 6-16A |
6-32A |
6-40A |
6-16A |
6-32A |
6-16A |
6-32A |
| Power | / | 3.5 kW | 7 kW | 11 kW | 22 kW | ||
| Frequency | 60 Hz | 50 Hz | |||||
| IP Degree | IP65 | ||||||
| Mechanical life | No-load plug in/pull out>10000 time | ||||||
| Impact of external force | 1m drop and 2T vehicle run over pressure | ||||||
| Insulation Resistance | > 100M ohm (DC 500V) | ||||||
| Terminal Temperature Rise | < 50K | ||||||
| Use environment | |||||||
| Working temperature | -30℃ ~ +50℃ | -22°F ~ +122°F | |||||
| Working humidity | 5%~95%HR | ||||||
| The cooling way | Natural air cooling | ||||||
| Display function | |||||||
| Display parameters | Charge voltage, charge current, charged power, SOC, fault code | ||||||
| Physical size | |||||||
| Control box size | L220xW100xH60mm | ||||||
